Model SP: #Greenheck, Inc.

Greenheck - Ceiling Exhaust Fan

Model SP ceiling exhaust fans are designed for applications where low sound levels are critical.  They are ideal selections for offices, conference rooms and restrooms.  Their low sound levels are achieved through quiet running forward curved wheels.  Models SP-A190 and higher also feature a 1/2" of acoustical insulation in housing for an even quieter performance.  All model SP fans are UL listed and licensed to bear the AMCA certified ratings seals for air and sound performance.

  Stock Notes:   Available Accessories:
  • Units are stocked with 115/60/1 motors
  • Quick release disconnect
  • Integral backdraft damper
  • Wall and discharge accessories
  • Vibration Isolators
  • Speed Controller

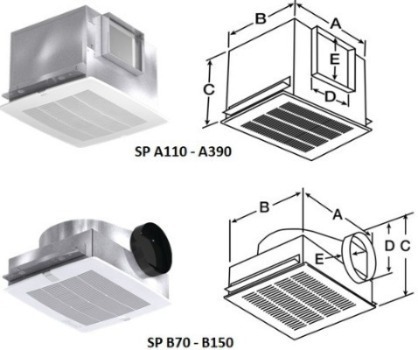

Dimensional Data
Model A B C Outlet
D E

SP-B70, B90, B110, B150

 13.875" 11.50" 7" 6" Dia. 1.25"

SP-A110, A125, A190

 13.25" 10.625" 9" 8" 6"
SP-A200, A250, A290, A390 14" 11.875" 11.25" 8" 8"



 Additional Sizes Available
  In Stock 1-Day 3-Day 10-Day
Greenheck Quick Delivery
*Please consult your EAP, Inc. Sales Representative for information



Performance Data and Pricing
Model   Energy Star®  RPM   Amps  Watts  Pressure in inches WG Price
  0 .100 .125 .250 .375 .500 .625 .750 .875 1.00
SP-B70 675  0.16  17.1  CFM 89 75 71 54 35
$119.00
Sones 0.8 0.8 0.9 1.4 2.0
SP-B90  700  0.18  21.1  CFM 104 92 89 72 57
$119.00
Sones 1.9 2.6 2.7 3.0 3.6
SP-A110 950 0.16 19.2 CFM 136 120 117 96
$196.00
Sones 1.2  0.8 0.8 1.5
SP-B110    950 1.14 80.2 CFM 133 114 110 97 95 94 91 85 72 50
$135.00
Sones 1.5 1.5 1.5 2.0 2.0 2.0 3.0 3.5 4.0 4.5
SP-A125 1100 0.19 22.5 CFM 152 131 127 109
$252.00
Sones 1.2 1.2 1.2 1.5
SP-B150    1050 1.70 128 CFM 160 156 155 154 152 149 147 138 123 92
$177.00
Sones 2.5 2.5 2.5 3.0 3.5 3.5 4.0 4.5 4.5 5.0
SP-A190 1400 0.45 54.4 CFM 226 208 204 180 138
$307.00
Sones 3.0 2.5 2.5 3.0 2.5
SP-A200 900 0.47 56.1 CFM 267 246 242 224 199 162 109 68
$307.00
Sones 2.0 2.0 2.0 2.5 3.0 3.5 4.0 4.5
SP-A250 1000 0.56 67 CFM 294 274 271 250 230 201 147 92
$307.00
Sones 2.5 2.5 2.5 3.0 3.5 4.0 5.0 5.0
SP-A290    1050 0.72 80.7 CFM 315 293 287 257 231 207 175 124
$339.00
Sones 2.5 2.5 2.5 3.0 3.0 3.5 3.5 4.5
SP-A390    1350 1.34 135 CFM 410 395 391 368 345 325 307 279
$360.00
Sones 4.5 4.5 4.5 4.5 5.0 5.0 5.5 5.5
