Model CSP:
#Greenheck
Greenheck - Inline Cabinet Exhaust Fan
Model CSP inline cabinet fans are designed for clean air applications where low sound levels are desired. They can be used for supply, exhaust or return applications within a duct system. Their low sound levels are achieved through quiet running forward curved wheels and an acoustically insulated housing. The outlet duct includes an integral aluminum backdraft damper that is easily converted from horizontal to vertical discharge positions. Model CSP fans are UL listed and licensed to bear the AMCA certified ratings seals for air and sound performance.
Stock Notes:
- Units are stocked with 115/60/1 motors
Accessories:
- Wall and discharge accesories
- Vibration Isolator

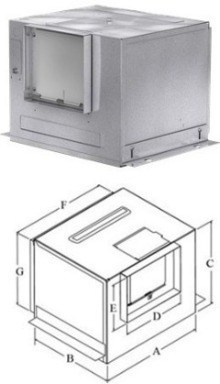

| Dimensional Data | |||||||
| Model | A | B | C | D | E | F | G |
| CSP-A190 | 13.25" | 10.675" | 9" | 8" | 6" | 12" | 9.25" |
| CSP-A250, A390 | 14" | 11.875" | 11.25" | 8" | 8" | 12.875" | 10" |
| Additional Sizes Available | ||||
| In Stock | 1-Day | 3-Day | 10-Day | |
| Greenheck Quick Delivery |  |
|
|
|
| *Please consult your EAP, Inc. Sales Representative for information | ||||
| Performance Data and Pricing | |||||||||||||
| Model | RPM | Amps* | Max Input Watts* | Pressure in inches WG | Price | ||||||||
| 0 | .100 | .125 | .250 | .375 | .500 | .625 | .750 | ||||||
| CSP-A190 | 1400 | 1.10 | 55.1 | CFM | 215 | 202 | 198 | 180 | 159 | 121 | $307.00  |
||
| Sones | 2.0 | 1.5 | 2.0 | 2.0 | 2.5 | 2.5 | |||||||
| Watts* | 55.1 | 54.1 | 53.7 | 51.9 | 49.8 | 46.0 | |||||||
| CSP-A250 | 1000 | 0.79 | 66.5 | CFM | 266 | 246 | 241 | 221 | 205 | 187 | 165 | 132 | $308.00 |
| Sones | 0.9 | 1.0 | 1.0 | 2.0 | 2.5 | 3.0 | 2.5 | 2.5 | |||||
| Watts* | 66.5 | 65.6 | 65.4 | 64.0 | 62.7 | 61.2 | 59.4 | 56.6 | |||||
| CSP-A390 | 1350 | 1.33 | 160.8 | CFM | 412 | 400 | 397 | 382 | 363 | 339 | 324 | 309 | $360.00 |
| Sones | 2.0 | 2.0 | 2.0 | 2.5 | 3.0 | 4.0 | 4.5 | 4.5 | |||||
| Watts* | 160.8 | 158.5 | 157.9 | 152.4 | 147.9 | 141.8 | 135.4 | 130.0 | |||||
| *Amp and Watt draw is approximate and may vary based on motor manufacturer. Above performance is for 115V. | |||||||||||||
